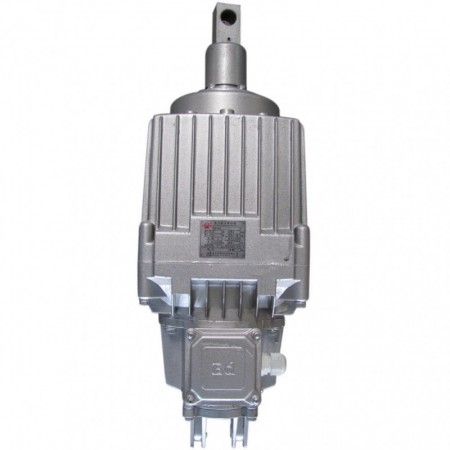

Komay Ed Series electro-hydraulic thrusters
Standards compliant
ED series comply with DIN 15430 standard.
Main design Features
The casing is made by casting aluminum alloy, light and good-look.
Electrical motor is of non-under-oil structure. B grade or F grade insulation(according to customer’s requirements), durable and good heat resistance.
Cover of junction box is tightly sealed. Cable stuffing box is adopted for inlet wire, which is firm and reliable. Electrical protection of casing reaches IP55 grade.
The surface of motor axle and pusher is handled specially to make the sealing parts much durable.
Balancing air housing is set at one side of oil cylinder casing. which can make the thruster to be installed at any direction within range 0-180°and enlarge the using range.
All sealing parts and bearing for Ed series are all world famous products. The sealing is reliable and durable. Fastening parts of Ed series are made of stainless steel, good-look and durable.
